Business Card Ray Tracer

Back when I was in grad school I got inspired by Paul Heckbert’s business card ray tracer challenge and wrote my own version as a way to procrastinate from working on my thesis. A few years ago this was found by Fabien Sanglard who wrote a nice analysis of it which went viral for a bit. Recently, I was going through some old files and found the expanded version of it that I’d originally started with.

Here’s the code in minified form, all 1337 bytes of it:

#include <stdlib.h>   // card > aek.ppm
#include <stdio.h>
#include <math.h>
typedef int i;typedef float f;struct v{
f x,y,z;v operator+(v r){return v(x+r.x
,y+r.y,z+r.z);}v operator*(f r){return
v(x*r,y*r,z*r);}f operator%(v r){return
x*r.x+y*r.y+z*r.z;}v(){}v operator^(v r
){return v(y*r.z-z*r.y,z*r.x-x*r.z,x*r.
y-y*r.x);}v(f a,f b,f c){x=a;y=b;z=c;}v
operator!(){return*this*(1/sqrt(*this%*
this));}};i G[]={247570,280596,280600,
249748,18578,18577,231184,16,16};f R(){
return(f)rand()/RAND_MAX;}i T(v o,v d,f
&t,v&n){t=1e9;i m=0;f p=-o.z/d.z;if(.01
<p)t=p,n=v(0,0,1),m=1;for(i k=19;k--;)
for(i j=9;j--;)if(G[j]&1<<k){v p=o+v(-k
,0,-j-4);f b=p%d,c=p%p-1,q=b*b-c;if(q>0
){f s=-b-sqrt(q);if(s<t&&s>.01)t=s,n=!(
p+d*t),m=2;}}return m;}v S(v o,v d){f t
;v n;i m=T(o,d,t,n);if(!m)return v(.7,
.6,1)*pow(1-d.z,4);v h=o+d*t,l=!(v(9+R(
),9+R(),16)+h*-1),r=d+n*(n%d*-2);f b=l%
n;if(b<0||T(h,l,t,n))b=0;f p=pow(l%r*(b
>0),99);if(m&1){h=h*.2;return((i)(ceil(
h.x)+ceil(h.y))&1?v(3,1,1):v(3,3,3))*(b
*.2+.1);}return v(p,p,p)+S(h,r)*.5;}i
main(){printf("P6 512 512 255 ");v g=!v
(-6,-16,0),a=!(v(0,0,1)^g)*.002,b=!(g^a
)*.002,c=(a+b)*-256+g;for(i y=512;y--;)
for(i x=512;x--;){v p(13,13,13);for(i r
=64;r--;){v t=a*(R()-.5)*99+b*(R()-.5)*
99;p=S(v(17,16,8)+t,!(t*-1+(a*(R()+x)+b
*(y+R())+c)*16))*3.5+p;}printf("%c%c%c"
,(i)p.x,(i)p.y,(i)p.z);}}

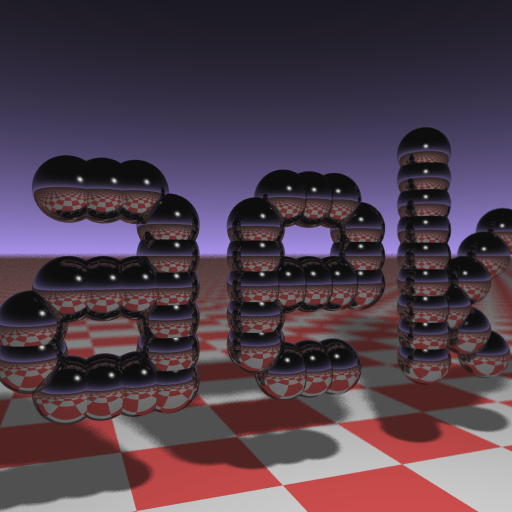

If you compile that and run it with redirection of stdout to aek.ppm, you’ll get an image in the PPM format that looks like this:


Following Fabien’s dissection of it, I had fun watching it get ported to Go, Rust, Python, Haskell, Java, and quite a few other languages. I was even surprised to see it turn up in an academic paper on automatic floating-point optimization which has been an interest of mine.

The expanded version of the program that I dusted off doesn’t exactly produce the image above. At one point I’d kept the two versions in sync but after a while I’d gotten used to directly editing the minified program and the expanded program fell behind. The main difference between the output of the two was that the minified version ended up with a slightly different camera angle, a better sky gradient, and the depth of field effect.

I’ve taken that version as a guide and re-expanded the minified version. This has the same basic formatting, variable names, and code flow as that original version where applicable, but now it produces a matching image. The original also lacked comments (I’ve written enough ray tracing code not to have needed them), but I’ve added some here as a guide to understanding and tweaking it. Some of these were covered by Fabien in his analysis, but many were not.

#include <stdlib.h> // card > aek.ppm
#include <stdio.h>
#include <math.h>

// A minimal vector class.  Used for points, vectors, and colors.
struct vec
{
    float x, y, z;
    vec() {}
    vec(
        float x,
        float y,
        float z )
        : x( x ),
          y( y ),
          z( z )
    {
    }
    // Summation
    vec operator+(
        vec const right ) const
    {
        return vec( x + right.x, y + right.y, z + right.z );
    }
    // Scaling
    vec operator*(
        float const right ) const
    {
        return vec( x * right, y * right, z * right );
    }
    // Dot product
    float operator%(
        vec const right ) const
    {
        return x * right.x + y * right.y + z * right.z;
    }
    // Cross product
    vec operator^(
        vec const right ) const
    {
        return vec( y * right.z - z * right.y,
                    z * right.x - x * right.z,
                    x * right.y - y * right.x );
    }
    // Normalization
    vec operator!() const
    {
        return *this * ( 1.0f / sqrtf( *this % *this ) );
    }
};

// Trace a ray from the origin along the given direction.  Returns
// 0 if the ray misses, 1 if it hits the ground plane, and 2 if it
// hits a sphere.  In the later two cases, also sets best_t to the
// parametric distance and normal to the surface normal.
int trace(
    vec origin,
    vec direction,
    float &best_t,
    vec &normal )
{
    // Initially assume a miss
    int material = 0;
    best_t = 1.0e9f;
    // First check if the ray hits the ground plane;
    // subtract origin.z from something to move plane up and down
    float plane_t = -origin.z / direction.z;
    if ( plane_t > 0.01f )
    {
        best_t = plane_t;
        normal = vec( 0.0f, 0.0f, 1.0f );
        material = 1;
    }
    // Then check for a closer hit against the spheres;
    // bits in the numbers here encode presence of spheres
    int bits[] = { 247570, 280596, 280600, 249748,
                   18578, 18577, 231184, 16, 16  };
    for ( int j = 0; j < 9; ++j )
        for ( int i = 0; i < 19; ++i )
            if ( bits[ j ] & ( 1 << i ) )
            {
                // Position of spheres; adjust offset to move
                vec center = vec( i, 0.0f, j + 4.0f );
                // Ray/sphere intersection (origin always outside)
                vec offset = origin + center * -1.0f;
                float b = offset % direction;
                float c = offset % offset - 1.0f;
                float discriminant = b * b - c;
                if ( discriminant > 0.0f )
                {
                    float sphere_t = -b - sqrtf( discriminant );
                    if ( sphere_t > 0.01f && sphere_t < best_t )
                    {
                        best_t = sphere_t;
                        normal = !( offset + direction * best_t );
                        material = 2;
                    }
                }
            }
    return material;
}

// Uniform random number in [0,1] since drand48() isn't portable.
float uniform()
{
    return static_cast< float >( rand() ) / RAND_MAX;
}

// Compute light received at origin from the given direction.
// Invokes trace() to test for ray hits against geometry and
// invokes itself recursively for reflection.
vec shade(
    vec origin,
    vec direction )
{
    float best_t;
    vec normal;
    int material = trace( origin, direction, best_t, normal );
    // If ray hit sky, shade with simple gradient
    if ( material == 0 )
        return vec( 0.7f, 0.6f, 1.0f ) *
            pow( 1.0f - direction.z, 4.0f );
    // Position where ray hit
    vec hit = origin + direction * best_t;
    // Normalized direction to sample towards area light source;
    // Adjust to move and resize light
    vec light = !( vec( 9.0f + uniform(),
                        9.0f + uniform(),
                        16.0f ) + hit * -1.0f );
    // Diffuse Lambertion reflectance
    float diffuse = light % normal;
    // Clamp to zero and check if in shadow
    if ( diffuse < 0.0f ||
         trace( hit, light, best_t, normal ) )
        diffuse = 0.0f;
    // If ray hit ground, shade checker board with diffuse+ambient
    if ( material == 1 )
    {
        int tile = static_cast< int >(
            ceil( hit.x * 0.2f ) + ceil( hit.y * 0.2f ) ) & 1;
        return ( tile ?
                 // Red and white; adjust to change colors
                 vec( 3.0f, 1.0f, 1.0f ) :
                 vec( 3.0f, 3.0f, 3.0f ) ) *
            // Adjust to change ambient and diffuse amounts
            ( diffuse * 0.2f + 0.1f );
    }
    // Otherwise, trace reflection and add phong highlight;
    // adjust 99 to change highlight size, 0.5 for reflectivity
    vec reflect = direction + normal * ( normal % direction * -2.0f );
    float phong = pow( light % reflect * ( diffuse > 0 ), 99.0f );
    return shade( hit, reflect ) * 0.5f +
        vec( phong, phong, phong );
}

// Driver routine for ray generation and image writing.
int main()
{
    // Write PPM header
    printf( "P6 512 512 255 " );
    // Setup camera basis; determines eye point, target, and FOV
    // 0.002 ~= 2 tan( 0.5 FOV ) / 512, where FOV = 54 deg
    vec eye( 17.0f, 16.0f, 8.0f );
    vec gaze = !( vec( 11.0f, 0.0f, 8.0f ) + eye * -1.0f );
    vec right = !( gaze ^ vec( 0.0f, 0.0f, 1.0f ) ) * 0.002f;
    vec down = !( gaze ^ right ) * 0.002f;
    // Upper left corner of projection screen
    vec corner = gaze + ( right + down ) * 512 * -0.5f;
    // Generate each pixel
    for ( int y = 0; y < 512; ++y )
        for ( int x = 0; x < 512; ++x )
        {
            // Accumulate from 13.0 to avoid CR/LF issues on Windows
            vec color( 13.0f, 13.0f, 13.0f );
            // Supersample the pixel; if samples per pixel is changed,
            // adjust 3.5 below to keep total color values under 255
            for ( int sample = 0; sample < 64; ++sample )
            {
                // Sample (square!) lens; 99 determines DOF blur
                vec lens = ( right * ( uniform() - 0.5f ) +
                              down * ( uniform() - 0.5f ) ) * 99.0f;
                // Sample towards random point in pixel
                vec direction = corner + right * ( x + uniform() ) +
                                          down * ( y + uniform() );
                // Trace from lens into scene and accumulate color;
                // 16 determines distance to focal plane
                color = color + shade(
                    eye + lens,
                    !( direction * 16.0f + lens * -1 ) ) * 3.5f;
            }
            printf( "%c%c%c",
                    static_cast< int >( color.x ),
                    static_cast< int >( color.y ),
                    static_cast< int >( color.z ) );
        }
}
