Sep 19, 2016

A 54-color Palette

I recently received an e-mail asking if I could run my palette generator to produce a 54-color palette. This is the same number of colors available on the old NES console (though it couldn’t do them all it once) and the person was curious how a palette from my program would compare. I’d always figured that if I ran my program again for a larger palette it would be for either 48 or 64 colors. But sure, I can do 54. Here’s what my program came up with.

First, I should note that I spent way less compute time on this than I did for my previous 16- and 32-color palettes. Those had a quality rating of 2.37 and 2.35, respectively, where the quality is defined as the ratio of the CIE DE 2000 difference between the two closest colors to the root mean squared error between a sampling of the RGB color cube and the closest matching colors in the palette. By comparison, this 54-color palette only measures 2.29.

That said, here are the colors that my program selected. As before, you can download this as a GIMP palette or grab the following image for use with an eye dropper tool in your favorite art program:


   05fec1 rgb(2.1%, 99.2%, 75.7%) bright teal
   32af87 rgb(19.8%, 68.4%, 53.1%) green blue
   387261 rgb(21.9%, 44.7%, 38.2%) blue green
   000000 rgb(0.0%, 0.0%, 0.0%) black
   1c332a rgb(11.0%, 20.3%, 16.7%) charcoal
   2a5219 rgb(16.7%, 32.3%, 10.0%) navy green
   2d8430 rgb(17.7%, 51.9%, 18.9%) tree green
   00b716 rgb(0.4%, 71.8%, 8.6%) green
   50fe34 rgb(31.4%, 99.2%, 20.4%) poison green
   a2d18e rgb(63.4%, 81.9%, 55.8%) light grey green
   84926c rgb(51.9%, 57.4%, 42.5%) green grey
   aabab3 rgb(66.8%, 73.0%, 70.2%) silver
   cdfff1 rgb(80.4%, 100.0%, 94.2%) eggshell blue
   05dcdd rgb(2.1%, 86.1%, 86.5%) aqua blue
   499faa rgb(28.7%, 62.3%, 66.6%) turquoise blue
   2f6d82 rgb(18.7%, 42.9%, 51.0%) sea blue
   3894d7 rgb(22.3%, 58.0%, 84.2%) azure
   78cef8 rgb(47.1%, 80.5%, 97.1%) lightblue
   bbc6ec rgb(73.4%, 77.4%, 92.4%) light periwinkle
   8e8cfd rgb(55.5%, 55.1%, 98.9%) lavender blue
   1f64f4 rgb(12.1%, 39.3%, 95.5%) bright blue
   25477e rgb(14.7%, 27.9%, 49.4%) cobalt
   72629f rgb(44.9%, 38.5%, 62.3%) dark lavender
   a48db5 rgb(64.1%, 55.4%, 70.8%) heather
   f5b8f4 rgb(96.1%, 71.9%, 95.3%) light lavendar
   df6ff1 rgb(87.4%, 43.5%, 94.5%) light magenta
   a831ee rgb(65.7%, 19.4%, 93.3%) electric purple
   3610e3 rgb(21.2%, 6.6%, 88.7%) strong blue
   241267 rgb(14.2%, 7.2%, 40.4%) dark indigo
   7f2387 rgb(49.8%, 13.9%, 52.8%) darkish purple
   471a3a rgb(27.8%, 10.5%, 22.8%) aubergine
   93274e rgb(57.5%, 15.3%, 30.5%) berry
   976877 rgb(59.3%, 40.7%, 46.6%) mauve
   e57ea3 rgb(89.7%, 49.4%, 64.0%) dull pink
   d5309d rgb(83.5%, 18.8%, 61.5%) purpley pink
   dd385a rgb(86.6%, 21.9%, 35.5%) pink red
   f28071 rgb(94.5%, 50.3%, 44.3%) salmon
   ee2911 rgb(93.1%, 16.4%, 6.9%) tomato red
   9e281f rgb(61.7%, 15.8%, 12.3%) brownish red
   4e211a rgb(30.6%, 13.0%, 10.2%) chocolate brown
   5b5058 rgb(35.6%, 31.6%, 34.8%) purplish brown
   5e4d28 rgb(37.1%, 30.3%, 15.9%) mud brown
   7e751a rgb(49.4%, 45.8%, 10.4%) ugly brown
   a2af22 rgb(63.6%, 68.4%, 13.5%) puke green
   e0f53f rgb(87.8%, 96.0%, 24.7%) sickly yellow
   fffbc6 rgb(100.0%, 98.2%, 77.6%) egg shell
   ffffff rgb(100.0%, 100.0%, 100.0%) white
   dfb9ba rgb(87.2%, 72.4%, 72.8%) pinkish grey
   ab8c76 rgb(67.1%, 54.8%, 46.2%) pale brown
   eec191 rgb(93.1%, 75.4%, 56.9%) light peach
   c19029 rgb(75.7%, 56.6%, 16.2%) ochre
   f8cb1a rgb(97.2%, 79.4%, 10.2%) golden yellow
   ea7924 rgb(91.7%, 47.5%, 14.3%) orange
   a15e30 rgb(63.0%, 37.0%, 18.9%) earth

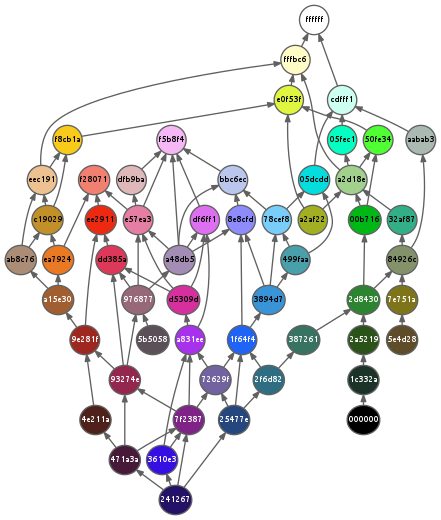

Naturally, I also had to create a mapping of it:
